7000 Series Heavy-Duty Cabinet

Your request has been sent! A representative will contact you as soon as possible.

Product Information

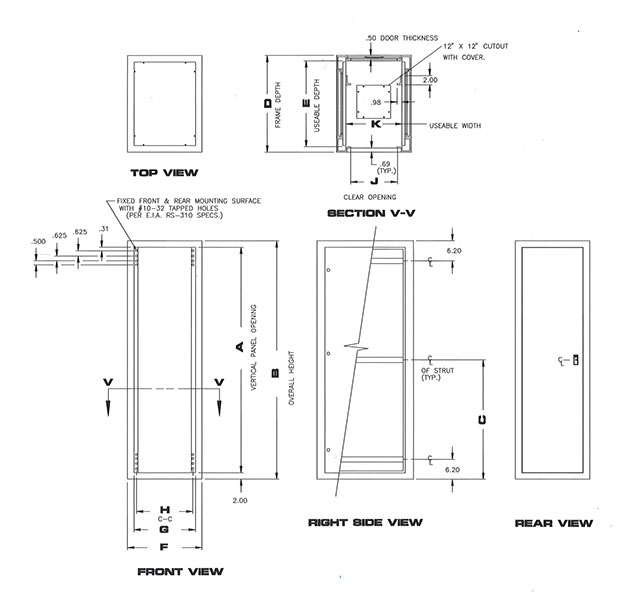

Product Image

Example of 7000 Series Heavy-Duty Cabinet

Series

VR7000

Options

  • Available in sizes from 15U to 45U
  • Upgraded 16 gauge panels
  • Flush mounted doors and panels
  • Louvered panels and doors
  • Various bases including castor, forklift, and stationary
  • Standard, offset and "Z" Mounting channels and angles
  • Round, tapped, or square hole mounting angles
  • Lifting eyes
  • Various locks and latches
  • Power strip
  • Rear horizontal space divider
  • Busbar

Fed Standard 595 Color Chart

Click to View

RAL Color Chart

Click to View

Spec Sheets

Click to View

Brochure

Click to View

Product Notes

  1. Cabinet Frame (12 gauge C.R.S.)
  2. Removable Side Panels (16 gauge C.R.S.)
  3. Removable Rear Door (16 gauge C.R.S.)
  4. Removable Top Cover (16 gauge C.R.S.)
  5. Mounting angles (1 pair rear) are 12 gauge C.R.S. with 0.270 diameter clearance holes per EIA RS-310 specs. Finish: zinc & bright.
  6. Removable bottom cover (12 gauge C.R.S.)

Product Variants

Results Per Page:
Item # ▲ Rack Units (U) ▲ Overall Width w/ Panels (in) ▲ Overall Depth w/ Panels (in) ▲ Overall Height (in) ▲ Hole C-C (in) ▲
VR7000-19-01-24-26 15 23.13 24 30.38 18.31
VR7000-19-01-24-31 18 23.13 24 35.63 18.31
VR7000-19-01-24-35 20 23.13 24 39.13 18.31
VR7000-19-01-24-42 24 23.13 24 46.13 18.31
VR7000-19-01-24-52 30 23.13 24 56.63 18.31
VR7000-19-01-24-61 35 23.13 24 65.38 18.31
VR7000-19-01-24-70 40 23.13 24 74.13 18.31
VR7000-19-01-24-78 45 23.13 24 82.88 18.31
VR7000-19-01-30-26 15 23.13 30 30.38 18.31
VR7000-19-01-30-31 18 23.13 30 35.63 18.31
VR7000-19-01-30-35 20 23.13 30 39.13 18.31
VR7000-19-01-30-42 24 23.13 30 46.13 18.31
VR7000-19-01-30-52 30 23.13 30 56.63 18.31
VR7000-19-01-30-61 35 23.13 30 65.38 18.31
VR7000-19-01-30-70 40 23.13 30 74.13 18.31
VR7000-19-01-30-78 45 23.13 30 82.88 18.31
VR7000-19-01-36-26 15 23.13 36 30.38 18.31
VR7000-19-01-36-31 18 23.13 36 35.63 18.31
VR7000-19-01-36-35 20 23.13 36 39.13 18.31
VR7000-19-01-36-42 24 23.13 36 46.13 18.31
VR7000-19-01-36-52 30 23.13 36 56.63 18.31
VR7000-19-01-36-61 35 23.13 36 65.38 18.31
VR7000-19-01-36-70 40 23.13 36 74.13 18.31
VR7000-19-01-36-78 45 23.13 36 82.88 18.31
VR7000-19-02-24-26 15 23.13 24 30.38 18.31
VR7000-19-02-24-31 18 23.13 24 35.63 18.31
VR7000-19-02-24-35 20 23.13 24 39.13 18.31
VR7000-19-02-24-42 24 23.13 24 46.13 18.31
VR7000-19-02-24-52 30 23.13 24 56.63 18.31
VR7000-19-02-24-61 35 23.13 24 65.38 18.31
VR7000-19-02-24-70 40 23.13 24 74.13 18.31
VR7000-19-02-24-78 45 23.13 24 82.88 18.31
VR7000-19-02-30-26 15 23.13 30 30.38 18.31
VR7000-19-02-30-31 18 23.13 30 35.63 18.31
VR7000-19-02-30-35 20 23.13 30 39.13 18.31
VR7000-19-02-30-42 24 23.13 30 46.13 18.31
VR7000-19-02-30-52 30 23.13 30 56.63 18.31
VR7000-19-02-30-61 35 23.13 30 65.38 18.31
VR7000-19-02-30-70 40 23.13 30 74.13 18.31
VR7000-19-02-30-78 45 23.13 30 82.88 18.31
VR7000-19-02-36-26 15 23.13 36 30.38 18.31
VR7000-19-02-36-31 18 23.13 36 35.63 18.31
VR7000-19-02-36-35 20 23.13 36 39.13 18.31
VR7000-19-02-36-42 24 23.13 36 46.13 18.31
VR7000-19-02-36-52 30 23.13 36 56.63 18.31
VR7000-19-02-36-61 35 23.13 36 65.38 18.31
VR7000-19-02-36-70 40 23.13 36 74.13 18.31
VR7000-19-02-36-78 45 23.13 36 82.88 18.31
VR7000-19-03-24-26 15 23.13 24 30.38 18.31
VR7000-19-03-24-31 18 23.13 24 35.63 18.31
VR7000-19-03-24-35 20 23.13 24 39.13 18.31
VR7000-19-03-24-42 24 23.13 24 46.13 18.31
VR7000-19-03-24-52 30 23.13 24 56.63 18.31
VR7000-19-03-24-61 35 23.13 24 65.38 18.31
VR7000-19-03-24-70 40 23.13 24 74.13 18.31
VR7000-19-03-24-78 45 23.13 24 82.88 18.31
VR7000-19-03-30-26 15 23.13 30 30.38 18.31
VR7000-19-03-30-31 18 23.13 30 35.63 18.31
VR7000-19-03-30-35 20 23.13 30 39.13 18.31
VR7000-19-03-30-42 24 23.13 30 46.13 18.31
VR7000-19-03-30-52 30 23.13 30 56.63 18.31
VR7000-19-03-30-61 35 23.13 30 65.38 18.31
VR7000-19-03-30-70 40 23.13 30 74.13 18.31
VR7000-19-03-30-78 45 23.13 30 82.88 18.31
VR7000-19-03-36-26 15 23.13 36 30.38 18.31
VR7000-19-03-36-31 18 23.13 36 35.63 18.31
VR7000-19-03-36-35 20 23.13 36 39.13 18.31
VR7000-19-03-36-42 24 23.13 36 46.13 18.31
VR7000-19-03-36-52 30 23.13 36 56.63 18.31
VR7000-19-03-36-61 35 23.13 36 65.38 18.31
VR7000-19-03-36-70 40 23.13 36 74.13 18.31
VR7000-19-03-36-78 45 23.13 36 82.88 18.31
VR7000-24-01-24-26 15 28.13 24 30.38 23.31
VR7000-24-01-24-31 18 28.13 24 35.63 23.31
VR7000-24-01-24-35 20 28.13 24 39.13 23.31
VR7000-24-01-24-42 24 28.13 24 46.13 23.31
VR7000-24-01-24-52 30 28.13 24 56.63 23.31
VR7000-24-01-24-61 35 28.13 24 65.38 23.31
VR7000-24-01-24-70 40 28.13 24 74.13 23.31
VR7000-24-01-24-78 45 28.13 24 82.88 23.31
VR7000-24-01-30-26 15 28.13 30 30.38 23.31
VR7000-24-01-30-31 18 28.13 30 35.63 23.31
VR7000-24-01-30-35 20 28.13 30 39.13 23.31
VR7000-24-01-30-42 24 28.13 30 46.13 23.31
VR7000-24-01-30-52 30 28.13 30 56.63 23.31
VR7000-24-01-30-61 35 28.13 30 65.38 23.31
VR7000-24-01-30-70 40 28.13 30 74.13 23.31
VR7000-24-01-30-78 45 28.13 30 82.88 23.31
VR7000-24-01-36-26 15 28.13 36 30.38 23.31
VR7000-24-01-36-31 18 28.13 36 35.63 23.31
VR7000-24-01-36-35 20 28.13 36 39.13 23.31
VR7000-24-01-36-42 24 28.13 36 46.13 23.31
VR7000-24-01-36-52 30 28.13 36 56.63 23.31
VR7000-24-01-36-61 35 28.13 36 65.38 23.31
VR7000-24-01-36-70 40 28.13 36 74.13 23.31
VR7000-24-01-36-78 45 28.13 36 82.88 23.31
VR7000-24-02-24-26 15 28.13 24 30.38 23.31
VR7000-24-02-24-31 18 28.13 24 35.63 23.31
VR7000-24-02-24-35 20 28.13 24 39.13 23.31
VR7000-24-02-24-42 24 28.13 24 46.13 23.31
VR7000-24-02-24-52 30 28.13 24 56.63 23.31
VR7000-24-02-24-61 35 28.13 24 65.38 23.31
VR7000-24-02-24-70 40 28.13 24 74.13 23.31
VR7000-24-02-24-78 45 28.13 24 82.88 23.31
VR7000-24-02-30-26 15 28.13 30 30.38 23.31
VR7000-24-02-30-31 18 28.13 30 35.63 23.31
VR7000-24-02-30-35 20 28.13 30 39.13 23.31
VR7000-24-02-30-42 24 28.13 30 46.13 23.31
VR7000-24-02-30-52 30 28.13 30 56.63 23.31
VR7000-24-02-30-61 35 28.13 30 65.38 23.31
VR7000-24-02-30-70 40 28.13 30 74.13 23.31
VR7000-24-02-30-78 45 28.13 30 82.88 23.31
VR7000-24-02-36-26 30 28.13 36 30.38 23.31
VR7000-24-02-36-31 35 28.13 36 35.63 23.31
VR7000-24-02-36-35 40 28.13 36 39.13 23.31
VR7000-24-02-36-42 45 28.13 36 46.13 23.31
VR7000-24-02-36-52 15 28.13 36 56.63 23.31
VR7000-24-02-36-61 18 28.13 36 65.38 23.31
VR7000-24-02-36-70 20 28.13 36 74.13 23.31
VR7000-24-02-36-78 24 28.13 36 82.88 23.31
VR7000-24-03-24-26 30 28.13 24 30.38 23.31
VR7000-24-03-24-31 35 28.13 24 35.63 23.31
VR7000-24-03-24-35 40 28.13 24 39.13 23.31
VR7000-24-03-24-42 45 28.13 24 46.13 23.31
VR7000-24-03-24-52 30 28.13 24 56.63 23.31
VR7000-24-03-24-61 35 28.13 24 65.38 23.31
VR7000-24-03-24-70 40 28.13 24 74.13 23.31
VR7000-24-03-24-78 45 28.13 24 82.88 23.31
VR7000-24-03-30-26 15 28.13 30 30.38 23.31
VR7000-24-03-30-31 18 28.13 30 35.63 23.31
VR7000-24-03-30-35 20 28.13 30 39.13 23.31
VR7000-24-03-30-42 24 28.13 30 46.13 23.31
VR7000-24-03-30-52 30 28.13 30 56.63 23.31
VR7000-24-03-30-61 35 28.13 30 65.38 23.31
VR7000-24-03-30-70 40 28.13 30 74.13 23.31
VR7000-24-03-30-78 45 28.13 30 82.88 23.31
VR7000-24-03-36-26 30 28.13 36 30.38 23.31
VR7000-24-03-36-31 35 28.13 36 35.63 23.31
VR7000-24-03-36-35 40 28.13 36 39.13 23.31
VR7000-24-03-36-42 45 28.13 36 46.13 23.31
VR7000-24-03-36-52 15 28.13 36 56.63 23.31
VR7000-24-03-36-61 18 28.13 36 65.38 23.31
VR7000-24-03-36-70 20 28.13 36 74.13 23.31
VR7000-24-03-36-78 24 28.13 36 82.88 23.31
VR7000-30-01-24-26 30 34.13 24 30.38 29.31
VR7000-30-01-24-31 35 34.13 24 35.63 29.31
VR7000-30-01-24-35 40 34.13 24 39.13 29.31
VR7000-30-01-24-42 45 34.13 24 46.13 29.31
VR7000-30-01-24-52 30 34.13 24 56.63 29.31
VR7000-30-01-24-61 35 34.13 24 65.38 29.31
VR7000-30-01-24-70 40 34.13 24 74.13 29.31
VR7000-30-01-24-78 45 34.13 24 82.88 29.31
VR7000-30-01-30-26 15 34.13 30 30.38 29.31
VR7000-30-01-30-31 18 34.13 30 35.63 29.31
VR7000-30-01-30-35 20 34.13 30 39.13 29.31
VR7000-30-01-30-42 24 34.13 30 46.13 29.31
VR7000-30-01-30-52 30 34.13 30 56.63 29.31
VR7000-30-01-30-61 35 34.13 30 65.38 29.31
VR7000-30-01-30-70 40 34.13 30 74.13 29.31
VR7000-30-01-30-78 45 34.13 30 82.88 29.31
VR7000-30-01-36-26 30 34.13 36 30.38 29.31
VR7000-30-01-36-31 35 34.13 36 35.63 29.31
VR7000-30-01-36-35 40 34.13 36 39.13 29.31
VR7000-30-01-36-42 45 34.13 36 46.13 29.31
VR7000-30-01-36-52 15 34.13 36 56.63 29.31
VR7000-30-01-36-61 18 34.13 36 65.38 29.31
VR7000-30-01-36-70 20 34.13 36 74.13 29.31
VR7000-30-01-36-78 24 34.13 36 82.88 29.31
VR7000-30-02-24-26 30 34.13 24 30.38 29.31
VR7000-30-02-24-31 35 34.13 24 35.63 29.31
VR7000-30-02-24-35 40 34.13 24 39.13 29.31
VR7000-30-02-24-42 45 34.13 24 46.13 29.31
VR7000-30-02-24-52 30 34.13 24 56.63 29.31
VR7000-30-02-24-61 35 34.13 24 65.38 29.31
VR7000-30-02-24-70 40 34.13 24 74.13 29.31
VR7000-30-02-24-78 45 34.13 24 82.88 29.31
VR7000-30-02-30-26 15 34.13 30 30.38 29.31
VR7000-30-02-30-31 18 34.13 30 35.63 29.31
VR7000-30-02-30-35 20 34.13 30 39.13 29.31
VR7000-30-02-30-42 24 34.13 30 46.13 29.31
VR7000-30-02-30-52 30 34.13 30 56.63 29.31
VR7000-30-02-30-61 35 34.13 30 65.38 29.31
VR7000-30-02-30-70 40 34.13 30 74.13 29.31
VR7000-30-02-30-78 45 34.13 30 82.88 29.31
VR7000-30-02-36-26 30 34.13 36 30.38 29.31
VR7000-30-02-36-31 35 34.13 36 35.63 29.31
VR7000-30-02-36-35 40 34.13 36 39.13 29.31
VR7000-30-02-36-42 45 34.13 36 46.13 29.31
VR7000-30-02-36-52 15 34.13 36 56.63 29.31
VR7000-30-02-36-61 18 34.13 36 65.38 29.31
VR7000-30-02-36-70 20 34.13 36 74.13 29.31
VR7000-30-02-36-78 24 34.13 36 82.88 29.31
VR7000-30-03-24-26 30 34.13 24 30.38 29.31
VR7000-30-03-24-31 35 34.13 24 35.63 29.31
VR7000-30-03-24-35 40 34.13 24 39.13 29.31
VR7000-30-03-24-42 45 34.13 24 46.13 29.31
VR7000-30-03-24-52 30 34.13 24 56.63 29.31
VR7000-30-03-24-61 35 34.13 24 65.38 29.31
VR7000-30-03-24-70 40 34.13 24 74.13 29.31
VR7000-30-03-24-78 45 34.13 24 82.88 29.31
VR7000-30-03-30-26 15 34.13 30 30.38 29.31
VR7000-30-03-30-31 18 34.13 30 35.63 29.31
VR7000-30-03-30-35 20 34.13 30 39.13 29.31
VR7000-30-03-30-42 24 34.13 30 46.13 29.31
VR7000-30-03-30-52 30 34.13 30 56.63 29.31
VR7000-30-03-30-61 35 34.13 30 65.38 29.31
VR7000-30-03-30-70 40 34.13 30 74.13 29.31
VR7000-30-03-30-78 45 34.13 30 82.88 29.31
VR7000-30-03-36-26 15 34.13 36 30.38 29.31
VR7000-30-03-36-31 18 34.13 36 35.63 29.31
VR7000-30-03-36-35 20 34.13 36 39.13 29.31
VR7000-30-03-36-42 24 34.13 36 46.13 29.31
VR7000-30-03-36-52 30 34.13 36 56.63 29.31
VR7000-30-03-36-61 35 34.13 36 65.38 29.31
VR7000-30-03-36-70 40 34.13 36 74.13 29.31
VR7000-30-03-36-78 45 34.13 36 82.88 29.31
