3000 Series Medium Duty Solid Sided Cabinet

Your request has been sent! A representative will contact you as soon as possible.

Product Information

Product Image

Example of 3000 Series Medium Duty Solid Sided Cabinet

Series

VR3000

Options

  • Available in sizes from 15U to 45U
  • EMI Shielding
  • Copper Busbar
  • Face mounted door
  • Heavy-duty lifting eyes
  • Various locks and latches
  • Louvered panels and doors
  • Various bases including castor, forklift, and stationary
  • Standard, offset and "Z" Mounting channels
  • Round, tapped, or square mounting
  • Power strip assembly
  • Rear horizontal space divider

Fed Standard 595 Color Chart

Click to View

RAL Color Chart

Click to View

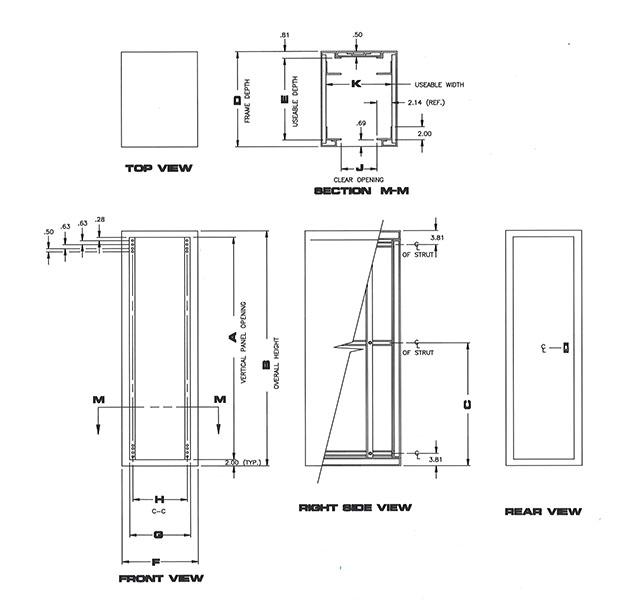

Spec Sheets

Click to View

Brochure

Click to View

Product Notes

  • Cabinet frame consists of 16 gauge C.R.S. non-removable sides, 16 gauge C.R.S. top, and 12 gauge C.R.S. bottom.
  • Removable rear door is made from 16 gauge C.R.S.
  • Mounting angles (2 pair) are made from 12 gauge C.R.S. with #10-32 tapped holes (front), 0.270" diameter clearance holes (rear) per EIA RS-310 specs. Finish: zinc and bright.

Product Variants

Results Per Page:
Item # ▲ Rack Units (U) ▲ Overall Width w/ Panels (in) ▲ Overall Depth w/ Panels (in) ▲ Overall Height (in) ▲ Clear Opening (in) ▲ Hole C-C (in) ▲
VR3000-19-01-24-26 15 24 24 30.31 17.94 18.31
VR3000-19-01-24-31 18 24 24 35.56 17.94 18.31
VR3000-19-01-24-35 20 24 24 39.06 17.94 18.31
VR3000-19-01-24-42 24 24 24 46.06 17.94 18.31
VR3000-19-01-24-52 30 24 24 56.56 17.94 18.31
VR3000-19-01-24-61 35 24 24 65.31 17.94 18.31
VR3000-19-01-24-70 40 24 24 74.06 17.94 18.31
VR3000-19-01-24-78 45 24 24 82.81 17.94 18.31
VR3000-19-01-30-26 15 24 30 30.31 17.94 18.31
VR3000-19-01-30-31 18 24 30 35.56 17.94 18.31
VR3000-19-01-30-35 20 24 30 39.06 17.94 18.31
VR3000-19-01-30-42 24 24 30 46.06 17.94 18.31
VR3000-19-01-30-52 30 24 30 56.56 17.94 18.31
VR3000-19-01-30-61 35 24 30 65.31 17.94 18.31
VR3000-19-01-30-70 40 24 30 74.06 17.94 18.31
VR3000-19-01-30-78 45 24 30 82.81 17.94 18.31
VR3000-19-01-36-26 15 24 36 30.31 17.94 18.31
VR3000-19-01-36-31 18 24 36 35.56 17.94 18.31
VR3000-19-01-36-35 20 24 36 39.06 17.94 18.31
VR3000-19-01-36-42 24 24 36 46.06 17.94 18.31
VR3000-19-01-36-52 30 24 36 56.56 17.94 18.31
VR3000-19-01-36-61 35 24 36 65.31 17.94 18.31
VR3000-19-01-36-70 40 24 36 74.06 17.94 18.31
VR3000-19-01-36-78 45 24 36 82.81 17.94 18.31
VR3000-19-02-24-26 15 24 24 30.31 17.94 18.31
VR3000-19-02-24-31 18 24 24 35.56 17.94 18.31
VR3000-19-02-24-35 20 24 24 39.06 17.94 18.31
VR3000-19-02-24-42 24 24 24 46.06 17.94 18.31
VR3000-19-02-24-52 30 24 24 56.56 17.94 18.31
VR3000-19-02-24-61 35 24 24 65.31 17.94 18.31
VR3000-19-02-24-70 40 24 24 74.06 17.94 18.31
VR3000-19-02-24-78 45 24 24 82.81 17.94 18.31
VR3000-19-02-30-26 15 24 30 30.31 17.94 18.31
VR3000-19-02-30-31 18 24 30 35.56 17.94 18.31
VR3000-19-02-30-35 20 24 30 39.06 17.94 18.31
VR3000-19-02-30-42 24 24 30 46.06 17.94 18.31
VR3000-19-02-30-52 30 24 30 56.56 17.94 18.31
VR3000-19-02-30-61 35 24 30 65.31 17.94 18.31
VR3000-19-02-30-70 40 24 30 74.06 17.94 18.31
VR3000-19-02-30-78 45 24 30 82.81 17.94 18.31
VR3000-19-02-36-26 15 24 36 30.31 17.94 18.31
VR3000-19-02-36-31 18 24 36 35.56 17.94 18.31
VR3000-19-02-36-35 20 24 36 39.06 17.94 18.31
VR3000-19-02-36-42 24 24 36 46.06 17.94 18.31
VR3000-19-02-36-52 30 24 36 56.56 17.94 18.31
VR3000-19-02-36-61 35 24 36 65.31 17.94 18.31
VR3000-19-02-36-70 40 24 36 74.06 17.94 18.31
VR3000-19-02-36-78 45 24 36 82.81 17.94 18.31
VR3000-19-03-24-26 15 24 24 30.31 17.94 18.31
VR3000-19-03-24-31 18 24 24 35.56 17.94 18.31
VR3000-19-03-24-35 20 24 24 39.06 17.94 18.31
VR3000-19-03-24-42 24 24 24 46.06 17.94 18.31
VR3000-19-03-24-52 30 24 24 56.56 17.94 18.31
VR3000-19-03-24-61 35 24 24 65.31 17.94 18.31
VR3000-19-03-24-70 40 24 24 74.06 17.94 18.31
VR3000-19-03-24-78 45 24 24 82.81 17.94 18.31
VR3000-19-03-30-26 15 24 30 30.31 17.94 18.31
VR3000-19-03-30-31 18 24 30 35.56 17.94 18.31
VR3000-19-03-30-35 20 24 30 39.06 17.94 18.31
VR3000-19-03-30-42 24 24 30 46.06 17.94 18.31
VR3000-19-03-30-52 30 24 30 56.56 17.94 18.31
VR3000-19-03-30-61 35 24 30 65.31 17.94 18.31
VR3000-19-03-30-70 40 24 30 74.06 17.94 18.31
VR3000-19-03-30-78 45 24 30 82.81 17.94 18.31
VR3000-19-03-36-26 15 24 36 30.31 17.94 18.31
VR3000-19-03-36-31 18 24 36 35.56 17.94 18.31
VR3000-19-03-36-35 20 24 36 39.06 17.94 18.31
VR3000-19-03-36-42 24 24 36 46.06 17.94 18.31
VR3000-19-03-36-52 30 24 36 56.56 17.94 18.31
VR3000-19-03-36-61 35 24 36 65.31 17.94 18.31
VR3000-19-03-36-70 40 24 36 74.06 17.94 18.31
VR3000-19-03-36-78 45 24 36 82.81 17.94 18.31
VR3000-24-01-24-26 15 29 24 30.31 22.94 23.31
VR3000-24-01-24-31 18 29 24 35.56 22.94 23.31
VR3000-24-01-24-35 20 29 24 39.06 22.94 23.31
VR3000-24-01-24-42 24 29 24 46.06 22.94 23.31
VR3000-24-01-24-52 30 29 24 56.56 22.94 23.31
VR3000-24-01-24-61 35 29 24 65.31 22.94 23.31
VR3000-24-01-24-70 40 29 24 74.06 22.94 23.31
VR3000-24-01-24-78 45 29 24 82.81 22.94 23.31
VR3000-24-01-30-26 15 29 30 30.31 22.94 23.31
VR3000-24-01-30-31 18 29 30 35.56 22.94 23.31
VR3000-24-01-30-35 20 29 30 39.06 22.94 23.31
VR3000-24-01-30-42 24 29 30 46.06 22.94 23.31
VR3000-24-01-30-52 30 29 30 56.56 22.94 23.31
VR3000-24-01-30-61 35 29 30 65.31 22.94 23.31
VR3000-24-01-30-70 40 29 30 74.06 22.94 23.31
VR3000-24-01-30-78 45 29 30 82.81 22.94 23.31
VR3000-24-01-36-26 15 29 36 30.31 22.94 23.31
VR3000-24-01-36-31 18 29 36 35.56 22.94 23.31
VR3000-24-01-36-35 20 29 36 39.06 22.94 23.31
VR3000-24-01-36-42 24 29 36 46.06 22.94 23.31
VR3000-24-01-36-52 30 29 36 56.56 22.94 23.31
VR3000-24-01-36-61 35 29 36 65.31 22.94 23.31
VR3000-24-01-36-70 40 29 36 74.06 22.94 23.31
VR3000-24-01-36-78 45 29 36 82.81 22.94 23.31
VR3000-24-02-24-26 15 29 24 30.31 22.94 23.31
VR3000-24-02-24-31 18 29 24 35.56 22.94 23.31
VR3000-24-02-24-35 20 29 24 39.06 22.94 23.31
VR3000-24-02-24-42 24 29 24 46.06 22.94 23.31
VR3000-24-02-24-52 30 29 24 56.56 22.94 23.31
VR3000-24-02-24-61 35 29 24 65.31 22.94 23.31
VR3000-24-02-24-70 40 29 24 74.06 22.94 23.31
VR3000-24-02-24-78 45 29 24 82.81 22.94 23.31
VR3000-24-02-30-26 15 29 30 30.31 22.94 23.31
VR3000-24-02-30-31 18 29 30 35.56 22.94 23.31
VR3000-24-02-30-35 20 29 30 39.06 22.94 23.31
VR3000-24-02-30-42 24 29 30 46.06 22.94 23.31
VR3000-24-02-30-52 30 29 30 56.56 22.94 23.31
VR3000-24-02-30-61 35 29 30 65.31 22.94 23.31
VR3000-24-02-30-70 40 29 30 74.06 22.94 23.31
VR3000-24-02-30-78 45 29 30 82.81 22.94 23.31
VR3000-24-02-36-26 15 29 36 30.31 22.94 23.31
VR3000-24-02-36-31 18 29 36 35.56 22.94 23.31
VR3000-24-02-36-35 20 29 36 39.06 22.94 23.31
VR3000-24-02-36-42 24 29 36 46.06 22.94 23.31
VR3000-24-02-36-52 30 29 36 56.56 22.94 23.31
VR3000-24-02-36-61 35 29 36 65.31 22.94 23.31
VR3000-24-02-36-70 40 29 36 74.06 22.94 23.31
VR3000-24-02-36-78 45 29 36 82.81 22.94 23.31
VR3000-24-03-24-26 15 29 24 30.31 22.94 23.31
VR3000-24-03-24-31 18 29 24 35.56 22.94 23.31
VR3000-24-03-24-35 20 29 24 39.06 22.94 23.31
VR3000-24-03-24-42 24 29 24 46.06 22.94 23.31
VR3000-24-03-24-52 30 29 24 56.56 22.94 23.31
VR3000-24-03-24-61 35 29 24 65.31 22.94 23.31
VR3000-24-03-24-70 40 29 24 74.06 22.94 23.31
VR3000-24-03-24-78 45 29 24 82.81 22.94 23.31
VR3000-24-03-30-26 15 29 30 30.31 22.94 23.31
VR3000-24-03-30-31 18 29 30 35.56 22.94 23.31
VR3000-24-03-30-35 20 29 30 39.06 22.94 23.31
VR3000-24-03-30-42 24 29 30 46.06 22.94 23.31
VR3000-24-03-30-52 30 29 30 56.56 22.94 23.31
VR3000-24-03-30-61 35 29 30 65.31 22.94 23.31
VR3000-24-03-30-70 40 29 30 74.06 22.94 23.31
VR3000-24-03-30-78 45 29 30 82.81 22.94 23.31
VR3000-24-03-36-26 15 29 36 30.31 22.94 23.31
VR3000-24-03-36-31 18 29 36 35.56 22.94 23.31
VR3000-24-03-36-35 20 29 36 39.06 22.94 23.31
VR3000-24-03-36-42 24 29 36 46.06 22.94 23.31
VR3000-24-03-36-52 30 29 36 56.56 22.94 23.31
VR3000-24-03-36-61 35 29 36 65.31 22.94 23.31
VR3000-24-03-36-70 40 29 36 74.06 22.94 23.31
VR3000-24-03-36-78 45 29 36 82.81 22.94 23.31
VR3000-30-01-24-26 15 35 24 30.31 28.94 29.31
VR3000-30-01-24-31 18 35 24 35.56 28.94 29.31
VR3000-30-01-24-35 20 35 24 39.06 28.94 29.31
VR3000-30-01-24-42 24 35 24 46.06 28.94 29.31
VR3000-30-01-24-52 30 35 24 56.56 28.94 29.31
VR3000-30-01-24-61 35 35 24 65.31 28.94 29.31
VR3000-30-01-24-70 40 35 24 74.06 28.94 29.31
VR3000-30-01-24-78 45 35 24 82.81 28.94 29.31
VR3000-30-01-30-26 15 35 30 30.31 28.94 29.31
VR3000-30-01-30-31 18 35 30 35.56 28.94 29.31
VR3000-30-01-30-35 20 35 30 39.06 28.94 29.31
VR3000-30-01-30-42 24 35 30 46.06 28.94 29.31
VR3000-30-01-30-52 30 35 30 56.56 28.94 29.31
VR3000-30-01-30-61 35 35 30 65.31 28.94 29.31
VR3000-30-01-30-70 40 35 30 74.06 28.94 29.31
VR3000-30-01-30-78 45 35 30 82.81 28.94 29.31
VR3000-30-01-36-26 15 35 36 30.31 28.94 29.31
VR3000-30-01-36-31 18 35 36 35.56 28.94 29.31
VR3000-30-01-36-35 20 35 36 39.06 28.94 29.31
VR3000-30-01-36-42 24 35 36 46.06 28.94 29.31
VR3000-30-01-36-52 30 35 36 56.56 28.94 29.31
VR3000-30-01-36-61 35 35 36 65.31 28.94 29.31
VR3000-30-01-36-70 40 35 36 74.06 28.94 29.31
VR3000-30-01-36-78 45 35 36 82.81 28.94 29.31
VR3000-30-02-24-26 15 35 24 30.31 28.94 29.31
VR3000-30-02-24-31 18 35 24 35.56 28.94 29.31
VR3000-30-02-24-35 20 35 24 39.06 28.94 29.31
VR3000-30-02-24-42 24 35 24 46.06 28.94 29.31
VR3000-30-02-24-52 30 35 24 56.56 28.94 29.31
VR3000-30-02-24-61 35 35 24 65.31 28.94 29.31
VR3000-30-02-24-70 40 35 24 74.06 28.94 29.31
VR3000-30-02-24-78 45 35 24 82.81 28.94 29.31
VR3000-30-02-30-26 15 35 30 30.31 28.94 29.31
VR3000-30-02-30-31 18 35 30 35.56 28.94 29.31
VR3000-30-02-30-35 20 35 30 39.06 28.94 29.31
VR3000-30-02-30-42 24 35 30 46.06 28.94 29.31
VR3000-30-02-30-52 30 35 30 56.56 28.94 29.31
VR3000-30-02-30-61 35 35 30 65.31 28.94 29.31
VR3000-30-02-30-70 40 35 30 74.06 28.94 29.31
VR3000-30-02-30-78 45 35 30 82.81 28.94 29.31
VR3000-30-02-36-26 15 35 36 30.31 28.94 29.31
VR3000-30-02-36-31 18 35 36 35.56 28.94 29.31
VR3000-30-02-36-35 20 35 36 39.06 28.94 29.31
VR3000-30-02-36-42 24 35 36 46.06 28.94 29.31
VR3000-30-02-36-52 30 35 36 56.56 28.94 29.31
VR3000-30-02-36-61 35 35 36 65.31 28.94 29.31
VR3000-30-02-36-70 40 35 36 74.06 28.94 29.31
VR3000-30-02-36-78 45 35 36 82.81 28.94 29.31
VR3000-30-03-24-26 15 35 24 30.31 28.94 29.31
VR3000-30-03-24-31 18 35 24 35.56 28.94 29.31
VR3000-30-03-24-35 20 35 24 39.06 28.94 29.31
VR3000-30-03-24-42 24 35 24 46.06 28.94 29.31
VR3000-30-03-24-52 30 35 24 56.56 28.94 29.31
VR3000-30-03-24-61 35 35 24 65.31 28.94 29.31
VR3000-30-03-24-70 40 35 24 74.06 28.94 29.31
VR3000-30-03-24-78 45 35 24 82.81 28.94 29.31
VR3000-30-03-30-26 15 35 30 30.31 28.94 29.31
VR3000-30-03-30-31 18 35 30 35.56 28.94 29.31
VR3000-30-03-30-35 20 35 30 39.06 28.94 29.31
VR3000-30-03-30-42 24 35 30 46.06 28.94 29.31
VR3000-30-03-30-52 30 35 30 56.56 28.94 29.31
VR3000-30-03-30-61 35 35 30 65.31 28.94 29.31
VR3000-30-03-30-70 40 35 30 74.06 28.94 29.31
VR3000-30-03-30-78 45 35 30 82.81 28.94 29.31
VR3000-30-03-36-26 15 35 36 30.31 28.94 29.31
VR3000-30-03-36-31 18 35 36 35.56 28.94 29.31
VR3000-30-03-36-35 20 35 36 39.06 28.94 29.31
VR3000-30-03-36-42 24 35 36 46.06 28.94 29.31
VR3000-30-03-36-52 30 35 36 56.56 28.94 29.31
VR3000-30-03-36-61 35 35 36 65.31 28.94 29.31
VR3000-30-03-36-70 40 35 36 74.06 28.94 29.31
VR3000-30-03-36-78 45 35 36 82.81 28.94 29.31
