Custom Metal Fabrication

sheetmetal41.jpg                Equipment to Meet Your Needs

Whether you need engineering input on a custom metal product, precision cutting for a single prototype, or high-production stamping and finishing, your best source for complete sheet metal fabrication services is General Devices.

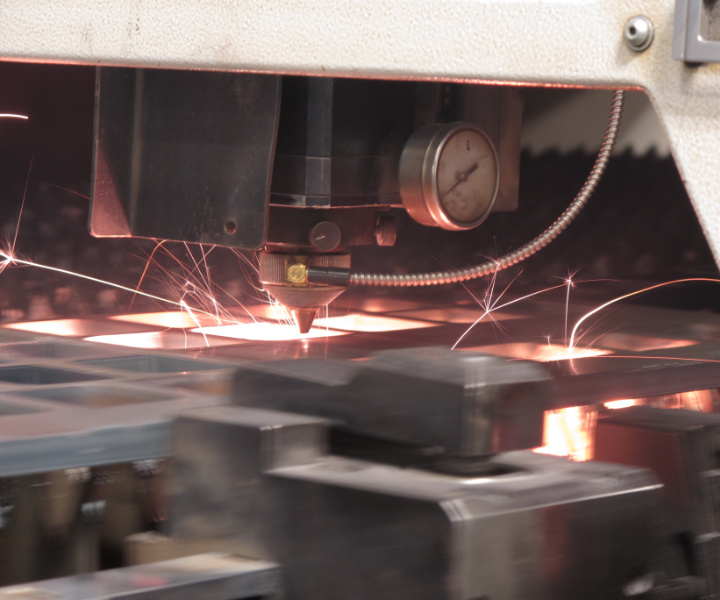

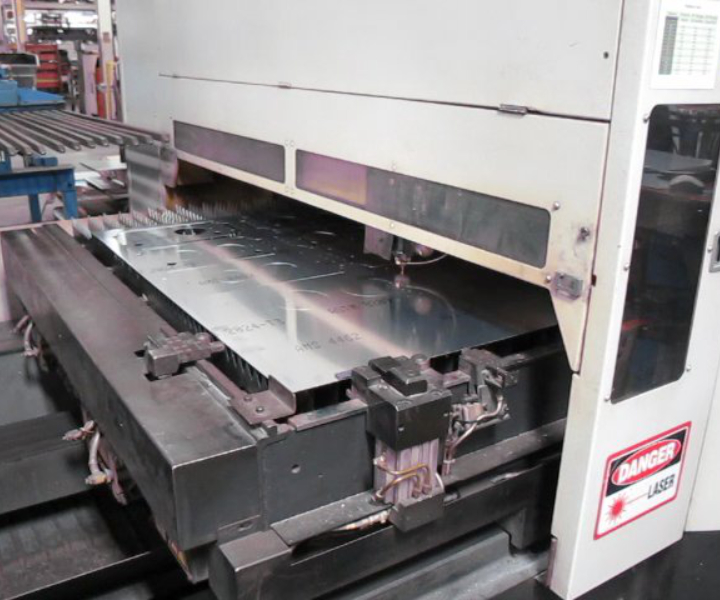

Laser Capabilites

  • Ideal for precision-cut short runs and prototypes where fast turnaround is important.
  • Maintains tight cutting tolerances & excellent high edge quality results.
  • Table capacities of up to 5' x 10'.
  • Cuts up to 1/2" of steel.
  • Complex pattern capability.

Equipment

  • Mazak NTX48 Champ™ Lasers
    • 4' x 8' table capacity on up to 1/2" thick steel
    • Exceptional static accuracy: positioning accuracy is ±0.1mm/ 500mm (0.004" in./19.69 in.) and repeatability is ±0.05mm (±0.002")
    • Ideal for complex patterns
  • Mazak Super Turbo-X Laser
    • 5' x 10' table capacity up to 1/2" thick steel
    • 4,000 watt, no-contact head
    • Z-clearance capacity of 4" on up to 1/2" C.R.S., 3/8" on stainless steel, 1/8" on aluminum
    • ±.004/20" positioning accuracy
    • Repeatability ±.002

Photo Gallery

Please select a photo to enlarge.


CNC Turret Punch Presses

  • Most efficient choice for jobs requiring standard hole sizes or a large number of holes per sheet.

Equipment

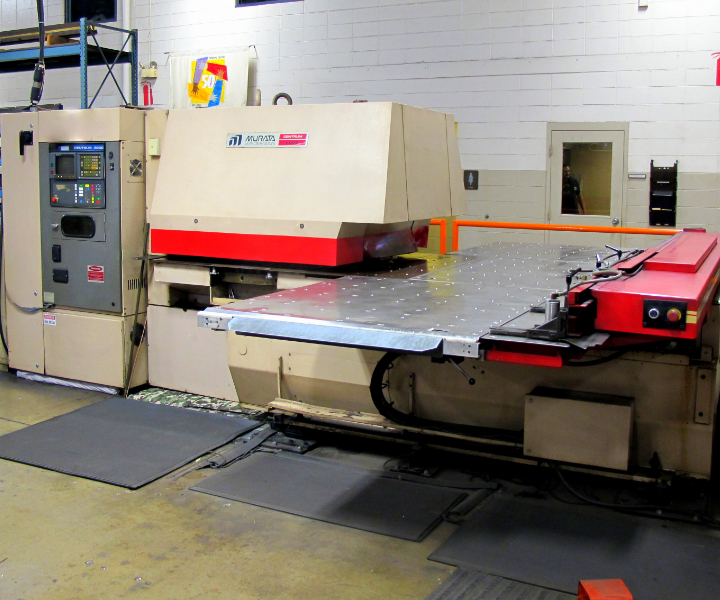

  • Murata Wiedemann Centrum 3000
    • Can work with sheets up to 50" x 78" without repositioning
    • 33 ton punching capacity
    • Positioning accuracy of ±.005" (non-accumulative)

Watch a video of our CNC Turret Press in action!


Photo Gallery

Please select a photo to enlarge.


Press Brakes, Stamping & Other Resources

Equipment

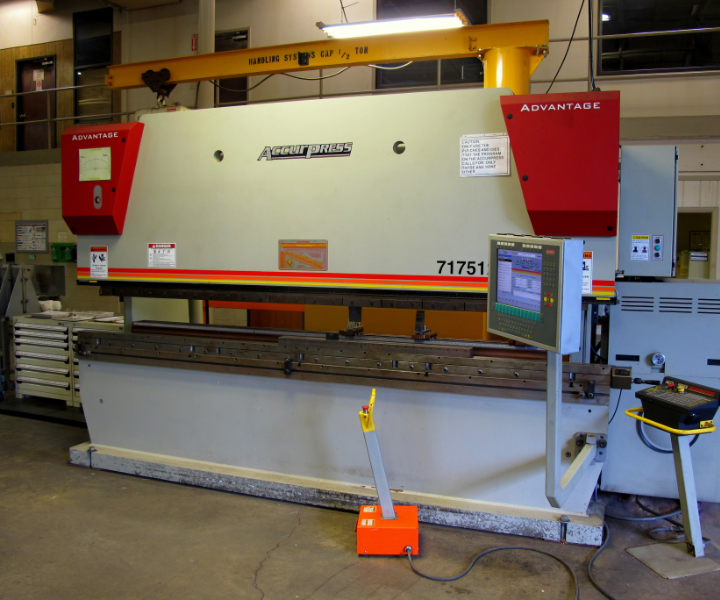

  • Accurpress Hydraulic Press Brake - 175 ton 12 ft. bed
    • Form mild steel 7/8" thickness up to 54" long
    • Form stainless steel 3/8" thickness up to 54" long
    • Form aluminum 1/2" thickness up to 54" long
    • Uses the latest advancements in precision tooling
    • Operated by a servo-controlled CNC gauging system
  • Accurpress Hydraulic Press Brake - 100 ton 10 ft. bed
    • Form mild steel 3/4" thickness up to 36" long
    • Form stainless steel 3/8" thickness up to 36" long
    • Form aluminum 1/2" thickness up to 36" long
    • Uses the latest advancements in precision tooling
    • Operated by a servo-controlled CNC gauging system

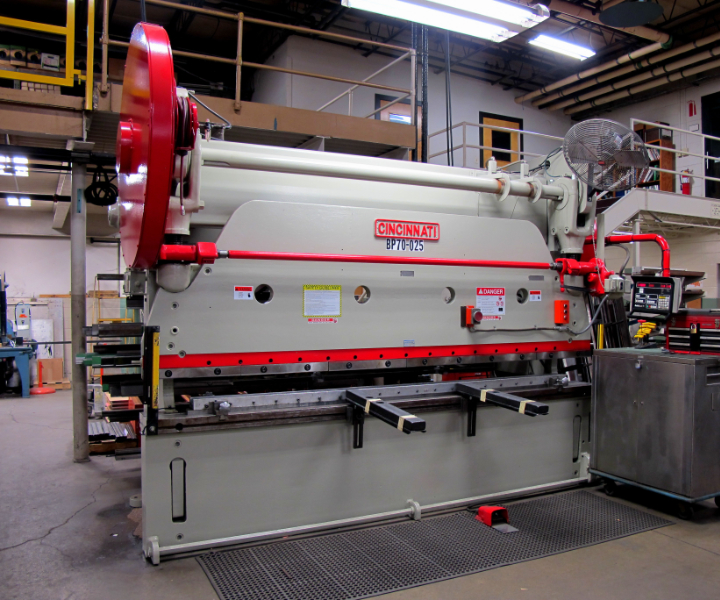

  • Multiple other Cincinnati and Niagara Press Brakes and Precision Sheers
  • Traditional shears, punch presses, and modern stamping dies

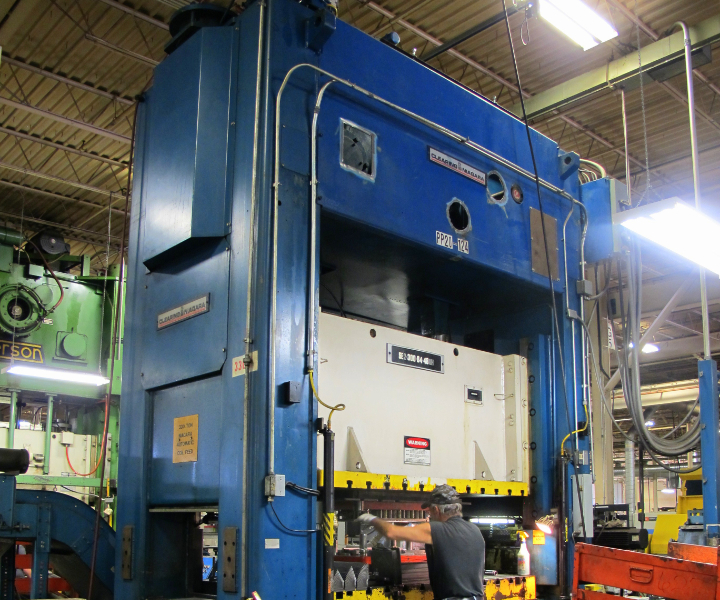

    • Stampings 5 to 500 tons
      • 330 Ton Niagara Press with automatic coil feed

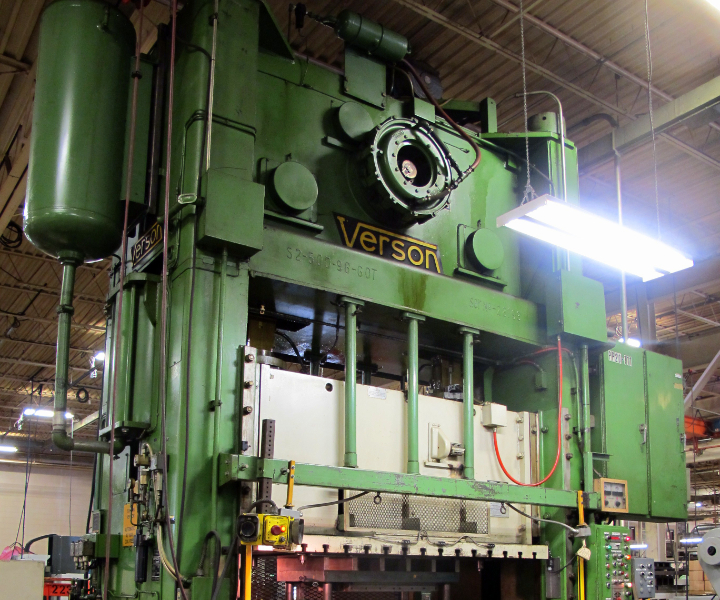

      • 500 Ton Version Press wing 42" coil feed
  • Saws, Rivet Machines and Orbital Rivet Machines

Photo Gallery

Please select a photo to enlarge.

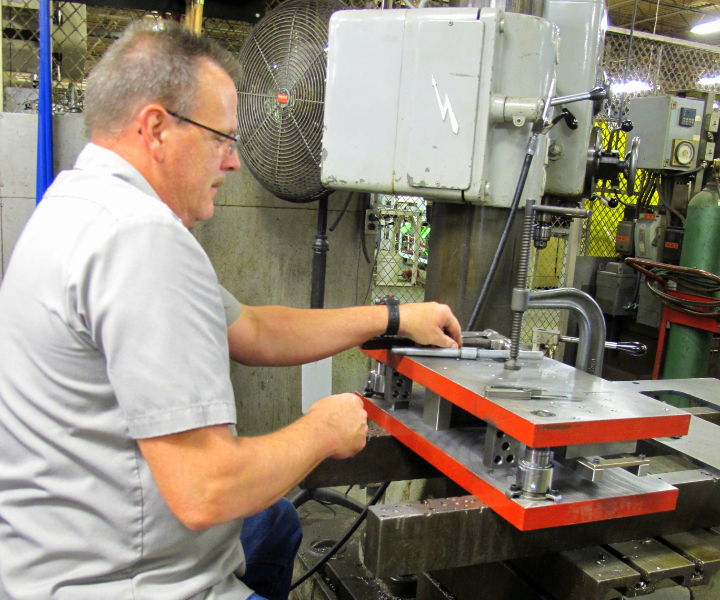

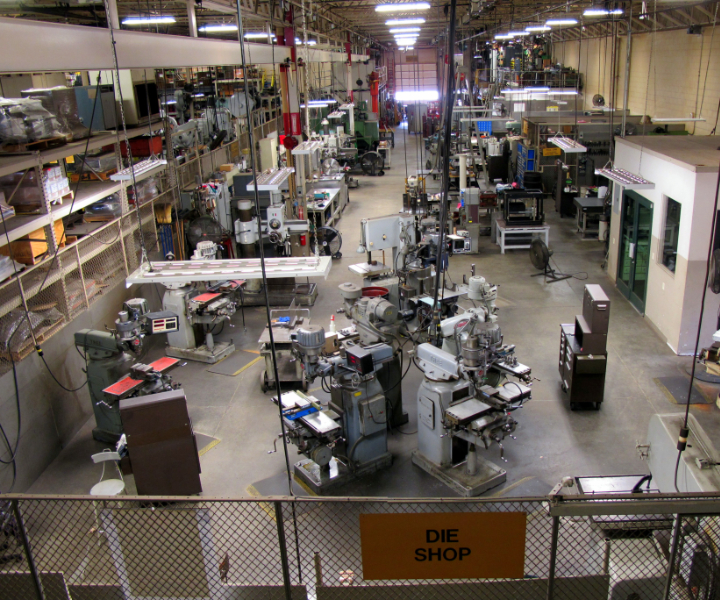

Full Service Hard Tooling and Die Shop

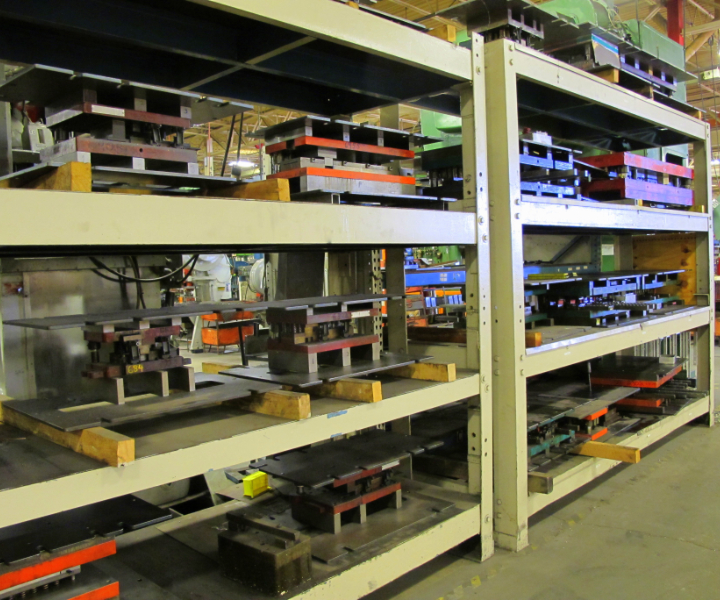

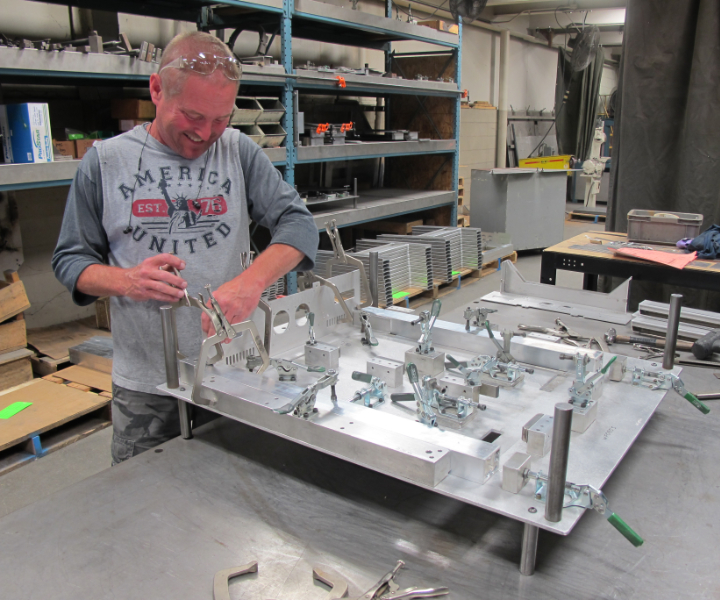

  • An on-site Tool & Die shop that designs, builds, and maintains dies, fixtures, weld fixtures, and inspection gauges.

Equipment

  • Lathes & Surface Grinders
  • Wire EDM

Photo Gallery

Please select a photo to enlarge.

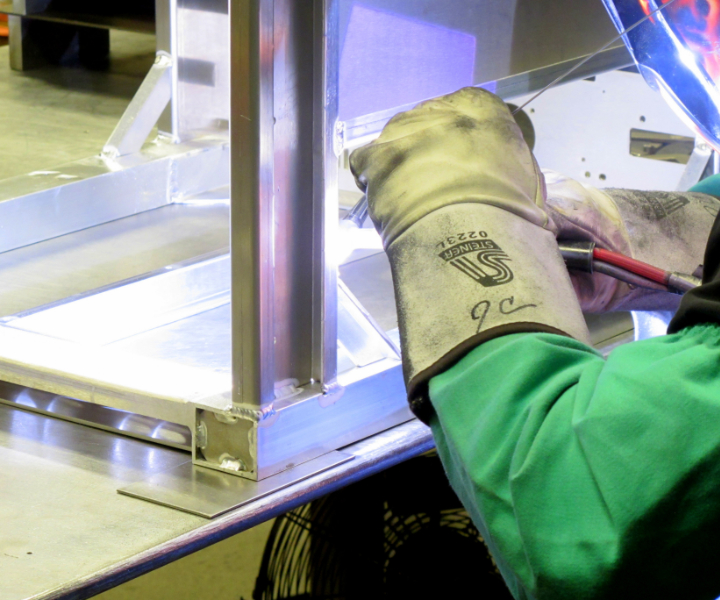

Welding

Our welders are held to extremely high standards. The machines and employees are constantly audited for quality and knowledge.

  • High level of experience welding aluminum
  • (Gas Metal-Arc Welding)/MIG
  • Robotic
  • GTAW (Gas Tungsten-Arc Welding)/TIG
  • RSW (Resistance Spot Welding)

Photo Gallery

Please select a photo to enlarge.

Services
Services Overview Custom Metal Fabrication Wet & Powder Coat Painting Silk Screen Printing

BSI ISO 9001-2008 FM 80298 RoHS Compliant Available
